Friday, May 21, 2010

Cross-browser compatibility

I've fixed the incompatibility with lesser browsers. It's still not perfect but Chrome and Safari now also work, although none is quite as good as Firefox yet. I've also uploaded a very alpha incomplete version of the mvd component and modules for Joomla! There's no friendly installer but a README.txt that explains basically how to get it going. This is something to build on, but it does work as far as it goes.

Thursday, May 20, 2010

Syncro-scroll, I love you

I don't know if anyone else has done this before. I suppose they have. What my Compare view now does is synchronise the left and right scrolling divs, even if they differ in length and content. With the Alpha web application I had something similar, but the user had to click on the text of one side, and the corresponding text on the other side scrolled down. This was done with hyperlinks, but it was a bit inconvenient because it required the user to actively click to get the two columns in alignment. Now I have a more discrete method with less 'excise' (as Cooper and Reiman would say). All the user has to do is scroll down or up in either div and the text on the other side automatically maintains absolute alignment with the scrolling side, even if the two texts are radically different in length. That seems to be all the user needs to pick up the corresponding text on the other side. The eye runs across, naturally in the middle of the frame, to the other side, and there is the text in its different context. I'm so delighted with it, and it just took 100 lines or so of simple Javascript.

CPU usage in Firefox is also good. When at rest the browser just shows the usual 0-4% activity. When you scroll continuously, usage can go as high as 13% momentarily, because it has to traverse the entire DOM tree every 1/2 a second. But as soon as you stop the Javascript detects no change and efficiently skips over most of the code.

I've added it to the Harpur site, where you can see it in action (no point in adding a lifeless screen dump here). I've tested it so far on Firefox and IE, which doesn't quite get the alignment right.

Monday, May 10, 2010

MVD Joomla Component

I've decided to release a very preliminary version of the Joomla Component I am developing. It provides a GUI front end to nmerge. The point of development it has reached is that it has a single view, an import page and a list of available MVDs. It hasn't been extensively debugged but I just want to get something up there so people can see that it is being developed and if they really want they can try it out, warts and all, and as incomplete as it is. As soon as I can I'll post a new project on Googlecode and provide a link to it from here. You can already see it in action on the Harpur Site. For the record, here are some screen-dumps of single-view with the windowbox facility.

Windowbox, when expanded, updates automatically as you scroll. You can also find the variants of any passage by selecting it. In order to do that it embeds invisible markers in the text which are used to tell nmerge where the selection begins and ends. These markers have a resolution of 256 bytes, so precise variation is not obtainable by this method. Further improvement is possible, but it is hard to derive the exact selection of the original text from the HTML version of it, and to do that consistently across platforms.

Single View with collapsed Windowbox

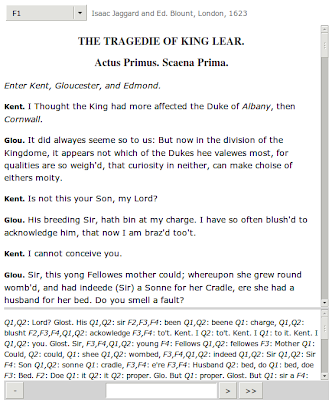

Single View with expanded Windowbox
